How to Use a Framing Nailer: Step-by-Step (Without Damage)

*To use a framing nailer, match three things: the head type (pneumatic or cordless), the nail specifications (which vary by model, e.g., 0.113″–0.131″ diameter and 2-3/8″–3-1/2″ length for the Harbor Freight model), and the firing mode (if selectable, sequential or bump).* You must connect clean, dry, regulated air not exceeding the tool’s maximum PSI (120 PSI for the Harbor Freight model) or a compatible battery, then follow the correct firing sequence for your tool’s mode. For example, the Harbor Freight model requires workpiece contact before trigger in its full sequential mode.

That safety sequence is where new users get into trouble, which is why it’s crucial to learn how to use a framing nailer correctly and follow essential nail gun safety tips. A framing nailer isn’t a hammer; it’s a controlled explosion. The difference between a perfect countersunk nail and a dangerous ricochet or a bent fastener is about a quarter-second of timing and a few PSI of air pressure. Dial those in wrong, and you’re not just building a wall, you’re building a list of expensive mistakes.

What follows: the mandatory safety gear, the exact steps to load and connect your tool, the two firing modes and when to use each, and how to read a bent nail or a shallow drive to fix it on the spot, all central to how to use a framing nailer. By the end, you’ll be able to pick the correct collation angle for your job and sink a nail in three seconds flat without splitting the wood.

Key Takeaways

• Wear ANSI-approved safety goggles and hearing protection every single time, the exhaust and flying debris are no joke.
• Always use clean, dry, regulated air and never exceed the tool’s maximum PSI (e.g., 120 PSI for the Harbor Freight model).
• In sequential mode, you must press the workpiece contact first, then pull the trigger, releasing both before the next nail.
• Add a few drops of pneumatic tool oil to the air inlet before use and after each hour of continuous operation if you don’t have an automatic oiler.
• If nails start bending, lower the air pressure; if they aren’t sinking deep enough, raise it or check for a mechanical depth adjustment.

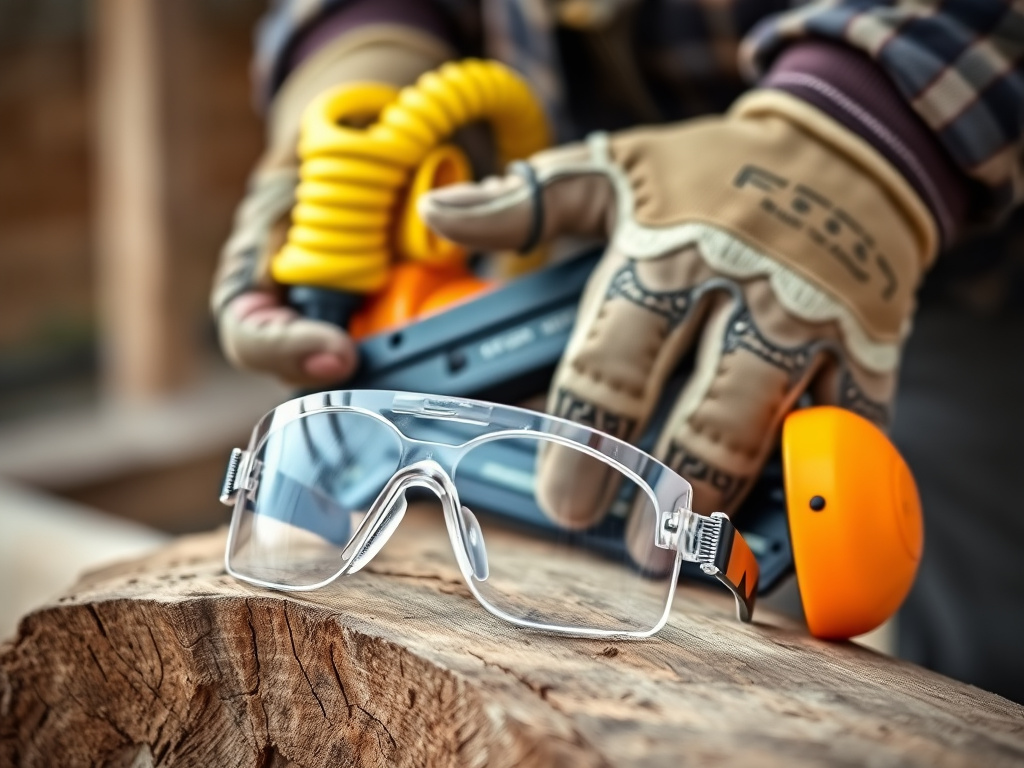

Before You Start: The Non-Negotiable Safety Gear

This isn’t a suggestion. The Harbor Freight manual is explicit: “Wear ANSI-approved safety goggles with side shields. Other people in the work area must also wear ANSI-approved impact safety goggles with side shields.” It also states, “Always wear hearing protection when using the tool.” The sound of a framing nailer is a sharp, concussive pop that will damage your hearing over time. You need eye and ear protection before you even pick up the tool.

Before you start: The tool applies extreme force. A nail can deflect off a knot or hidden metal and travel in an unexpected direction. Keep your free hand well away from the discharge area. Do not hold the tool near your body while driving, as the recoil can cause injury.

Your other essential item is the power source. For pneumatic models, the manual warns: “Never connect to an air source that is capable of exceeding 200 PSI.” You must use a regulator on your compressor and set it to the tool’s rated pressure, for the Harbor Freight model, that’s a maximum of 120 PSI. For cordless models like the Makita DBN900, only use the battery cartridges listed in the manual (BL1820B, BL1830B, etc.). Using the wrong battery can cause injury or fire.

Step 1: Loading Nails into the Magazine

First, make absolutely sure the tool is disconnected from the air supply or that the battery is removed. Then, attempt to fire it into a piece of scrap wood to discharge any remaining pressure or energy. You’ll hear a hollow click, that’s the sound of a safe tool.

Now, look at your nail strip. The heads should face up and the points down. The magazine has a pusher that applies pressure to the strip. Slide this pusher all the way to the back of the magazine until it locks in place. This opens the channel. Insert the nail strip into the top slot. Then, press the pusher release. The pusher will snap forward forcefully, keep your fingers clear, and apply pressure to the nails.

Common mistake: Trying to load a new strip of a different nail length without emptying the magazine first. The Harbor Freight manual states: “Empty Magazine before loading nails of different length.” If you don’t, the different-length nails will jam the mechanism solid.

Step 2: Connecting the Power Source

For a pneumatic nailer, this is the most critical setup step. You need three things: a compressor, a hose, and a regulator.

Component	Specification	What Happens If It’s Wrong
Air Compressor	Must deliver sufficient CFM.	Tool will “bog down,” firing slowly or not at all between compressor cycles.
Air Hose	Must be rated for your compressor’s pressure and have minimal pressure drop over its length.	Pressure drop across a long/thin hose reduces power at the tool, causing shallow drives.
Regulator	Set to tool’s operating pressure (e.g., 70–120 PSI for Senco FP325FRHXP).	Over-pressure damages the tool and voids warranty; under-pressure results in weak drives.

Before connecting, add a few drops of pneumatic tool oil into the airline connection if you don’t have an automatic oiler. The manual specifies adding a few more drops after each hour of continual use. This keeps the internal O-rings and piston lubricated.

Step 3: Understanding and Selecting the Firing Mode

This is the heart of operating the tool. You have two basic modes, and your tool may have one or both; understand the sequential vs bump fire differences.

The sequence is strict and must be followed.

1. Press the workpiece contact (the nose of the tool) firmly against the wood.
2. Then pull the trigger.
3. The nail fires.
4. You must release BOTH the trigger and the workpiece contact.
5. Only then can you repeat steps 1-4 for the next nail.

The Senco manual for the FP325FRHXP notes the tool may become inoperable if the trigger is held without the contact being used, requiring a full reset.

In this mode, you pull and hold the trigger. Then, each time you depress the workpiece contact against the work surface, a nail drives, a key part of how to use a framing nailer in bump fire. It’s faster for production work but requires greater control to avoid accidental fires.

Where this goes sideways: Switching to bump fire mode before you have the muscle memory for sequential operation. You’ll double-fire or nail your off-hand before you realize what happened. Master sequential first.

Step 4: The Firing Technique and Depth Adjustment

With your safety gear on, tool loaded, powered, and mode selected, you’re ready to fire. Hold the tool firmly with both hands, one on the grip and one supporting the body or magazine. Position it perpendicular to the work surface. A slight angle creates a “shiner”, a nail that glances off the edge and remains exposed.

Press the workpiece contact firmly against the wood. You should feel it compress slightly. For sequential mode, pull the trigger. You’ll feel a solid kick and hear a distinct POP-CHUNK. If the nail head is flush or slightly countersunk, your depth is good. If it’s proud (sticking out) or driven too deep, you need to adjust.

Symptom	Likely Cause	Immediate Fix
Nail head is proud of wood.	Air pressure too low.	Increase pressure on regulator in 5 PSI increments.
Nail is driven too deep, denting wood.	Air pressure too high.	Decrease pressure on regulator.
Nail bends consistently.	Hitting a knot, nail, or metal; or tool not held perpendicular.	Move nail location; check for obstructions; improve technique.
No nail fires (air sound only).	Empty magazine; jam; or low-nail lockout (on cordless).	Check nails; clear jam; insert new strip.

Depth can also be adjusted mechanically on some models; learn the full process for nail gun depth adjustment. The Harbor Freight tool allows adjustment by loosening a depth screw and moving the workpiece contact element. This changes how far the contact tip retracts before firing, physically controlling drive depth independent of air pressure.

Step 5: Choosing the Right Nail and Magazine Angle

Not all nails are the same, and the magazine angle isn’t just for looks. Using the wrong combo will cause jams and poor performance.

First, nails. Your tool’s manual specifies the exact range. For the Harbor Freight model, it’s nail diameter of 0.113″–0.131″ and length of 2-3/8″–3-1/2″. The Makita DBN900 takes clipped-head nails 50-90 mm long with a shank diameter of ø2.9 mm – ø3.3 mm, while the DBN901 takes round-head nails 50-90 mm long with a diameter of ø2.9 mm – ø3.8 mm. Using nails outside the specified diameter won’t fit the driver blade correctly.

The magazine angle, which varies by model (e.g., 21°, 28°, or 30–34° for Harbor Freight; 30°-34° for Makita DBN900; 20°-22° for Makita DBN901), affects how close you can get the tool to corners and obstacles, a key difference from a roofing nailer vs framing nailer. * Narrow angles (e.g., 20°-22° or 21°): Often use offset round-head nails and are better for tight interior corners. * Wider angles (e.g., 30°-34°): Are common and offer a balance of magazine capacity and maneuverability for general framing. Some models, like the Harbor Freight nailer, allow you to change the angle by loosening a hex bolt and sliding it into adjustment holes. Match the angle to the nails you have.

Step 6: Workspace Setup and Practical Techniques

A framing nailer is heavy, and the hose is a tripping hazard. Manage your workspace.

• Keep the air hose over your shoulder or use a hose reel to prevent it from snagging on lumber or underfoot.
• For wall framing, work from a stable platform. The Makita manual explicitly warns: “Do not use on scaffoldings, ladders.” Use properly constructed scaffolding or a stable workbench.
• Plan your nail placement. For joining two 2x4s, drive nails at a slight angle (toe-nailing) for greater holding power. For securing a plate to the floor, shoot straight down (through-nailing).

Your body position matters. Don’t overreach. Keep your feet planted and move the tool to the work, not your whole body. The recoil is manageable when you’re braced, but it can throw you off balance if you’re leaning.

Step 7: Basic Maintenance and Clearing Jams

At the end of every work session, disconnect the tool and fire it into scrap to release internal pressure. Wipe it down with a dry cloth. Periodically, add a few drops of oil to the air inlet as preventative maintenance.

Jams will happen. The procedure is always:

1. DISCONNECT THE AIR HOSE OR REMOVE THE BATTERY.
2. Wear your safety glasses.
3. Retract the pusher to open the magazine and remove any remaining nail strip.
4. Most tools have a jam-release mechanism or door near the nose. Open it according to the manual.
5. Use needle-nose pliers to carefully remove the bent nail or fragment. Never use your fingers.
6. Close the mechanism, reload, and test fire into scrap.

If you drive a nail into a hard material like metal, you risk damaging the driver blade. The Makita manual is clear: “Do not drive nails on hard materials such as metal or the like.”

Frequently Asked Questions

What size framing nailer do I need for 2x4s?

For standard 2×4 framing, consult local building codes for nail length requirements. Most framing nailers handle nails within a common range suitable for this work. Most framing nailers, including the Harbor Freight and Senco FP325FRHXP models, handle nails from 2-3/8″ to 3-1/2″ in length, which covers all common 2×4 work.

Do I want a 21 or 30 degree framing nailer?

Choose based on your workspace. A 21-degree nailer is better for tight interior corners and dense framing where obstruction is an issue. A 30-degree or 34-degree nailer is the versatile default for most wall, roof, and deck framing. The nails for different magazine angles (e.g., round-head for 21°, clipped-head for 34°) have different head profiles. Always verify the nails you use comply with local building codes.

Why do framers use nails instead of screws for framing?

Nails have superior shear strength and flexibility. A nailed joint can flex slightly under load (like wind) without snapping, behaving more like a hinge. A screw has greater tensile strength (pull-out resistance) but is more brittle and can snap under shear force. For the dynamic loads on a house frame, the flexibility of nails is a safety feature.

My framing nailer is not sinking nails. What’s wrong?

Check three things in order: 1) Air Pressure: Is your regulator set too low? Bump it up 5-10 PSI. 2) Mechanical Depth Setting: Is the depth adjustor screw or contact tip set too “shallow”? Adjust it. 3) Tool Wear: Is the driver blade worn or the piston O-ring leaking? This requires professional service.

How do I switch between sequential and bump fire mode?

Not all nailers can switch. If yours can (like the Senco FP325FRHXP), there is a physical switch, usually near the trigger. Always disconnect the air supply before changing this switch. The tool’s manual will show its exact location and operation.

The Bottom Line

A framing nailer turns a day-long hand-nailing job into an hour of work, but only if you respect it. The sequence is everything: gear up, connect clean air, load correctly, press-then-pull in sequential mode, and read the nail head to adjust your depth. Start with scrap wood every time you change pressure or nails, those thirty seconds save you from pulled nails and ruined lumber.

If you’re buying your first one, a 30-degree pneumatic framing nailer that only has a sequential trigger is the right choice. You’ll learn safe habits from the start. The speed of bump fire is worthless if you’re afraid of the tool or constantly fixing mistakes. Get the fundamentals down cold. The speed comes naturally after that.
