How to Remove a Rivet [5 Steps to Follow]

Imagine living in a world where structures such as buildings, aircraft, and even your beloved leather jacket couldn’t hold together. This is so because the rivet—a little but formidable part—is responsible for these objects’ structural integrity, along with many others. Rivets are mechanical fasteners that are designed to connect two or more materials together. They provide strength and stability in a wide variety of tasks, from complex building projects to delicate craft arts and crafts.

But sometimes it’s necessary to take out these sturdy fasteners. You could be working on a historic automobile restoration, restoring an antique piece of furniture, or fixing a leather purse. It’s possible that you’ll need to remove a broken or misplaced rivet, or you’ll just wish to disassemble something for recycling. For whatever reason, being how to remove a rivet is a talent that may be quite useful. This article will provide you with the information and methods required to effectively remove a rivet, keeping your projects going forward whether you are a devoted DIY enthusiast, an experienced craftsman, or a curious novice.

What You Need to Know about Rivets

Let’s spend a minute understanding rivets before getting into the intricacies of rivet removal. Rivets are basically long-lasting mechanical fasteners that have a head on one end of a smooth cylindrical shaft. They function by pushing the shaft through openings in two or more materials, producing a second head on the opposing side, and then compressing or hammering the shaft to solidify the connection.

There are many different types of rivets, each having special qualities and uses. The most typical varieties include:

• Solid Rivets: Being the oldest, they are recognized for their durability and are often employed in buildings that need tremendous strength, such as bridges or airplanes.
• Blind Rivets: They are utilized when there is just one side from which to reach the joint and are also referred to as “pop” rivets. These are often used in sheet metal assembly and automobile maintenance.
• Semi-Tubular Rivets: These rivets, which are employed in lightweight materials like luggage, brake linings, and certain jewelry, feature a somewhat hollow shaft.
• Rivet Nuts: These are often utilized in automotive and aerospace applications because they provide a strong thread in thin materials.

Rivets are widely used because of their durability, dependability, and simplicity. Rivets are a great option for heavy equipment and moving components since they don’t loosen as easily from vibrations as screws do. They also often cost less and take less time to install than other fasteners.

Rivets are not indestructible, however. Due to deterioration, corrosion, or while taking apart the jointed materials for repair, modification, or recycling, they could need to be replaced. Additionally, while doing repair or modification work, you may need to remove a rivet and replace it with one that is more appropriate for the project’s requirements. So learning how to remove a rivet is a crucial skill to have in any toolbox.

Tools Needed for Rivet Removal

It’s time to present the tools that will allow us to successfully remove rivets now that we have a firm understanding of rivets themselves. The most popular rivet removal tools and their specialized applications are listed below:

1. Drill and Drill Bits: When removing a rivet, a drill with the appropriate bit is often the first instrument of choice. For the optimum outcome, the bit size should match the size of the rivet. To separate the jointed components, the drill is used to bore into the rivet, thereby destroying it.
2. Rivet Removal Tool: A sophisticated tool that makes it possible to precisely and cleanly remove rivets without causing any damage to the surrounding material, often used in aerospace applications.
3. Chisel and Hammer: A chisel and hammer may be used to shear off the rivet’s head and then push the rivet through the hole for stronger or bigger rivets.
4. Punch and Hammer: For removing tiny rivets or those in more fragile fabrics, this is a typical paring.
5. Grinder or Dremel Tool: When working with bigger or more difficult rivets, they may be used to grind off the rivet head.

The size, kind, substance, and degree of accuracy required all play a significant role in selecting the best tool for removing rivets. Your knowledge and comfort level with utilizing these tools should also be taken into account.

Safety should always come first while using any kind of tool. Always put on the appropriate safety gear, such as gloves and safety glasses. To prevent unneeded movement, secure your workpiece, and make sure your equipment is always in excellent operating order. If you’ve never used any of these instruments before, ask an expert for advice or refer to reputable educational materials to learn correct handling procedures. Always keep in mind that a secure workstation promotes productivity.

The Easiest Way to Remove Rivets

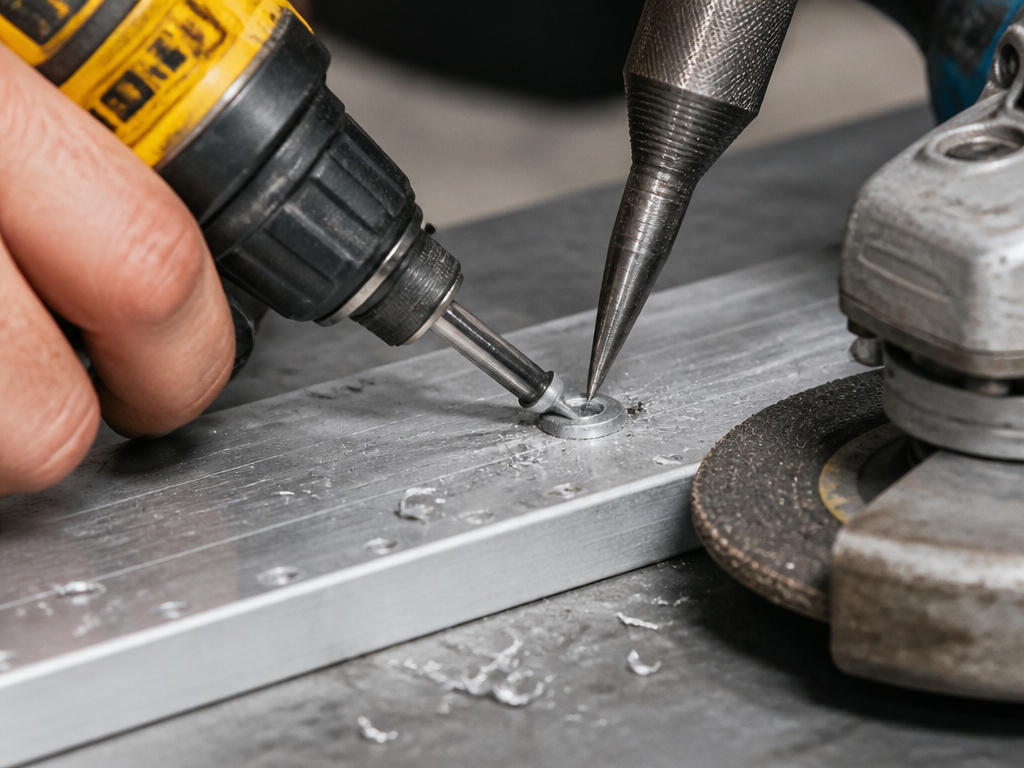

Although there are various ways to remove rivets, using a drill is often regarded as the most straightforward and efficient option. Here is a detailed instruction:

1. Step 1: Start by choosing a drill bit that is the same size as the shaft of the rivet. Start with a lesser size if you’re uncertain; you can always go up later.
2. Step 2: In the middle of the rivet head, place the drill bit. Some people find it useful to use a punch and hammer to make a tiny depression that will serve as a guide for the drill bit and keep it from sliding.
3. Step 3: Start drilling while using little pressure. To prevent slanting, be sure to keep the drill perpendicular to the rivet.
4. Step 4: Drill continuously until the shaft and rivet head separate. Don’t dig too far into the substance itself.
5. Step 5: With a punch or other similar instrument, you can generally press or tap out the remaining rivet shaft once the head has been removed.

Consider the scenario when you are restoring a vintage automobile and come upon a broken rivet on the vehicle’s body. To begin, you would choose a drill bit that matched the rivet’s size, place it on the head of the rivet, and gently drill through. After removing the head, you would tap out the rivet body to prevent damage to the car’s body.

This approach has a lot of benefits. Drilling is simple, fast, and just needs a typical home instrument. It is also one of the least harmful techniques, making it a great option when you want to protect nearby materials. To prevent damage, take precautions to safeguard your workspace and make sure it is cleaned up afterward. Keep in mind that this technique does produce metal shavings.

How to Remove Rivets from Leather

Leather rivet removal has special difficulties of its own. The removal of rivets is a delicate operation since leather is prone to cuts, punctures, and straining in contrast to tougher materials like metal or wood.

The following is a comprehensive tutorial on how to remove a rivet from leather safely and effectively:

1. Step 1: Examine the rivet thoroughly. In leather products, rivets often feature a flat washer-like component on one side and a smooth, domed head on the other. Determine these components before continuing.
2. Step 2: Gently peel the washer away from the leather using a tiny flat-head screwdriver or a butter knife or any thin, flat object. To prevent the leather from being harmed, go slowly and carefully.
3. Step 3: Use a pair of pliers to gently twist and remove the washer off the rivet shaft after you have raised it high enough to grasp it.
4. Step 4: The rivet’s remaining portion should readily press through the leather after the washer has been taken out.
5. Step 5: Finally, look for any indications of straining or damage in the leather. Apply a leather conditioner if required to help restore the texture and look of the material.

The following advice may help you avoid harming the leather while removing rivets:

• Go Slowly: Given enough effort, leather is a flexible material that is readily torn. Always take your time and use light, equal pressure.
• Use the Right Tools: The finest tools for going beneath the washer without damaging the leather are thin, flat ones.
• Don’t Twist: Avoid the urge to twist the washer while taking it out since doing so might strain or rip the leather. Instead, try to pull it off the rivet straight up.
• Condition Afterward: The leather could be a little strained or distorted once a rivet is removed. The look and suppleness of leather may be improved by using a leather conditioner.

You may keep your leather products in outstanding shape even after removing rivets by following these instructions and advice.

Manual Rivet Removal

In other cases, specialist equipment may not be available, or the job could call for a more laborious method of removing rivets. Thankfully, this is attainable with a few basic tools and some hard work.

Here is a step-by-step tutorial on removing a rivet by hand:

1. Step 1: Identify the head and tail of the rivet. The tail is usually smaller and often shaped like a mushroom, but the head is normally bigger and may be flat or domed.
2. Step 2: Tap the rivet’s tail gently with a hammer and a tiny, pointed punch. This will make it easier to remove the rivet by gently loosening it within the hole.
3. Step 3: When you have a tiny beginning point or imprint, place the pointed edge of a bigger punch on it and gently pound to force the rivet out through the hole. Depending on the size of the rivet and the materials it is attaching, this technique may need numerous attempts.
4. Step 4: When the rivet is sufficiently dislodged, use pliers to fully remove it. Take care not to cause any harm to the surrounding material.

Let’s use a real-world example to demonstrate this. Imagine you’re dismantling a vintage wooden container with rivets holding it together. You would tap the rivet with a punch and a hammer to release it after locating its tail. You would then pound it out with a bigger punch until you could grasp it with pliers and totally pull it out.

Despite being simple, this approach does offer advantages and disadvantages. On the bright side, it usually just takes a few simple tools and may remove rivets quickly, particularly from softer materials. Additionally, it is the preferred technique when the rivet’s head is unreachable. The drawbacks of this method include more physical work and a larger potential for material damage if not done correctly. Nevertheless, manual rivet removal may be a useful technique to have in your toolbox if you have a little patience and accuracy.

Can Rivets Be Removed and Replaced?

Yes, rivets can be taken out and replaced, albeit it may be a little more difficult than just taking them out. This may be required in a variety of situations, including when a rivet is rusted or broken, during repairs or alterations, or when upgrading to a new kind of rivet for esthetic or practical considerations.

There are a few essential stages to replacing a rivet:

1. Step 1: As was covered in the prior sections, start by carefully removing the current rivet while being careful not to harm the hole or the material around it.
2. Step 2: Once the old rivet has been removed, clean the hole to remove any dirt or burrs that could get in the way of the new rivet.
3. Step 3: Choose a fresh rivet that is the right kind and size for the materials being bonded. It is essential that the rivet’s diameter and length correspond to the size of the hole and the thickness of the materials, respectively.
4. Step 4: Make sure the new rivet fits tightly before inserting it into the hole.
5. Step 5: Create a second head on the tail side of the new rivet using a rivet tool or a hammer and punch, depending on the kind of rivet.

For instance, you would carefully remove the old rivet, clean the hole, and then choose a replacement rivet of the same size if you were rebuilding a vintage motorbike and discovered a rusted rivet on the fender. The new rivet would be inserted, and it would be firmly fastened using a rivet gun.

However, replacing rivets can provide some difficulties. The proper size and kind of rivet must be chosen since making the wrong decision might result in a weak joint or material damage. The appropriate tools must be used while replacing a rivet in order to place the new rivet correctly. The procedure of removing and replacing a rivet might, in certain cases, especially in older or fragile objects, put the material under stress or damage. To get the greatest outcomes, you must approach this procedure carefully, patiently, and with the necessary expertise.

Common Mistakes and How to Avoid Them

As a seasoned tool reviewer, I’ve seen my fair share of mistakes and gained insightful knowledge on rivet removal. Here are some typical errors and professional tips on how to prevent them:

Choosing the Wrong Tool

This may lead to an unsuccessful effort to remove the rivet or, worse still, damage to the nearby material. An excessively big drill bit, for instance, might expand the hole and make it challenging to attach a new rivet. Ensure that you choose the appropriate tool and size for the job.

Forcing the Rivet Out

Particularly when working with softer materials like leather or plastic, excessive effort might cause damage to the material around the rivet. Always use a little force at a time, and only use more if required.

Ignoring Safety Precautions

Without the proper safety equipment, rushing into a job may result in injury, particularly when working with sharp tools and flying metal shavings. Always operate in a well-lit, secure place and while wearing safety goggles and gloves.

Overlooking Rivet Replacement Size

It’s critical to match the size of the new rivet to the original if a rivet has to be replaced. A smaller rivet may not adequately keep the components together whereas a bigger rivet could cause the hole to become larger or the material to break.

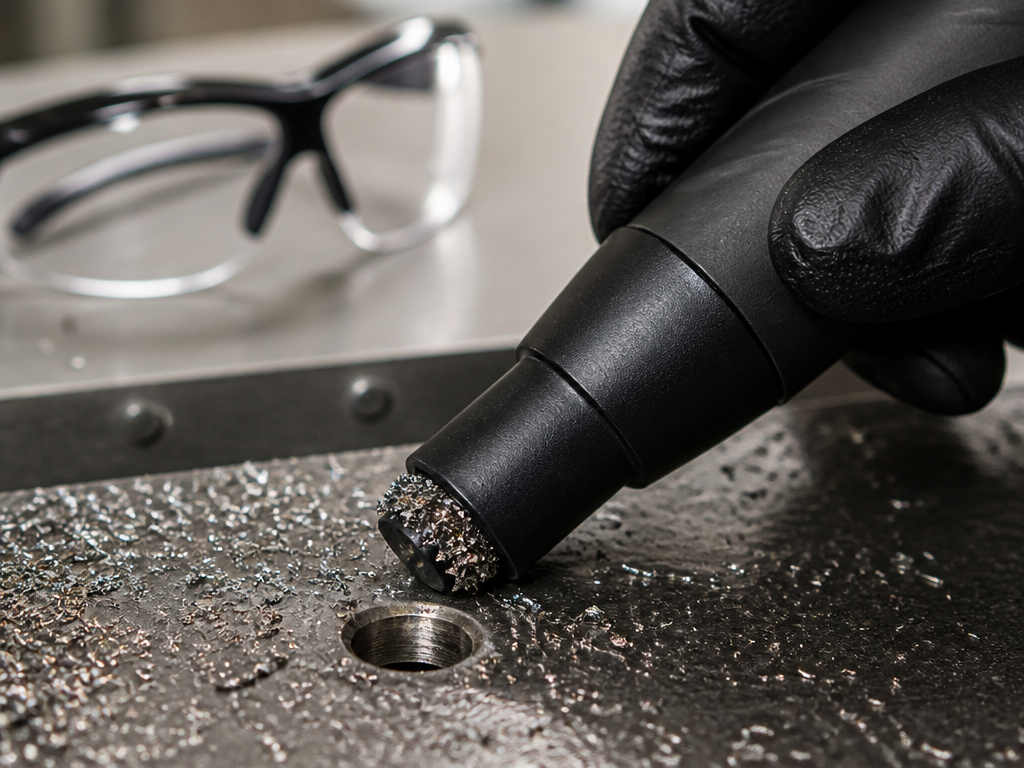

Not Cleaning the Hole After Rivet Removal

Although it may seem unimportant, any lingering dirt might prevent a new rivet from setting properly or make it sit unevenly. A new rivet should always be inserted after a thorough cleaning of the hole.

Using my experience as an example, I once made the error of trying to remove a rivet with a drill from a leather belt. I ruined the belt because the drill was too strong for such a fragile material. Since that time, I’ve discovered how to assess the material I’m dealing with and choose my instruments appropriately.

Always keep in mind that the purpose of any repair or restoration work is to enhance the object without causing more damage. The secret to properly removing and replacing rivets is patience, the right equipment, and a methodical approach.

Wrapping Up

Together, we’ve traveled a wonderful road through this blog, learning about rivets, their different applications, the various methods of rivet removal, and the necessary instruments. We’ve gone into great detail about removing rivets from unusual materials like leather and spoken about how to manually remove rivets if specialist equipment isn’t available. Importantly, we have also addressed the issue of rivet replacement, clarifying the steps involved, the difficulties it faces, and the best practices.

I’ve offered ideas from my own experiences as a seasoned tool reviewer in an effort to highlight possible hazards and offer advice. But keep in mind that perfecting rivet replacement and removal requires time and effort, just like any trade. Making errors is OK as long as we learn from them and move on.

This blog post should have clarified the technique of working with rivets and given you the information and assurance you need to attack any jobs with rivets. In the comments area, I welcome you to share your fascinating experiences, pose queries, and continue the conversation. Keep in mind that every experience, triumph, or setback contributes to the depth of our collective knowledge in this thriving community of tool aficionados.

Keep exploring, learning, and sharing since every obstacle we conquer will further our DIY endeavors. Here’s to many more exciting journeys ahead of us!
